Luchtgekoelde warmtepompen 2-pijps

IBK beschikt met het fabricaat Clint over een uitgebreide range warmtepompen met scroll-, schroef-, en centrifugaalcompressoren. De 2-pijps warmtepompen kunnen worden uitgevoerd met toerengeregelde compressoren en warmteterugwinning. Mede door toepassing van deze technieken zijn deze machines A-class gecategoriseerd. Ook toepassing van EC-ventilatoren voor de condensor ventilatoren behoort tot de mogelijkheden. Naast deze technieken kan een groot deel van de machines uitgerust worden met ingebouwde pompen en eventueel een geïntegreerd buffervat.

Advies of offerte aanvragen

Interesse in één van onze producten? Vraag om een advies! Want pas wanneer we alles van jouw project weten en de situatie écht begrijpen, kunnen we de beste oplossing voorstellen.

Luchtgekoelde warmtepomp aanvragen

228-1.211 kW Verwarmen
199-1.051 kW Koelen
Verwarmen tot + 50 °C

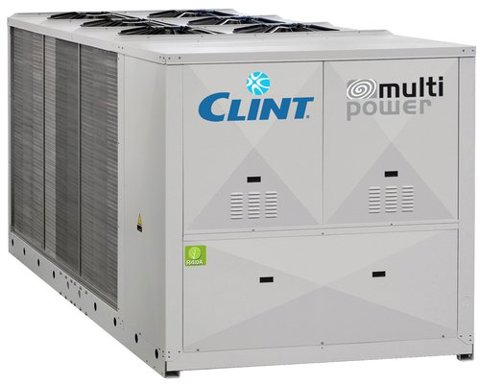

CHA/K/WP 726-P÷36012-P

AIRCOOLED LIQUID CHILLERS AND HEAT PUMPS WITH AXIAL FANS, SCROLL COMPRESSORS AND PLATE EXCHANGER

The liquid Chillers and Heat Pumps of the CHA/K 726-P÷36012-P series, with R410A refrigerant, are designed for large-sized service sector or industrial ambients.
The units are characterized by multi-compressor design on double cooling circuit, to reach high energy performances, reduction of current at start-up, elimination of inertial tanks and excellent silent functioning. The use of components built in large series makes them highly reliable and the management of a high number of compressors allows increased life span with reduction of machine stopping risks and easier maintenance operations. A wide range of accessories, factory fitted or supplied separately, complete the outstanding versatility and functionality of the series.
Are available as option the new EC Inverter fans with high available static pressure and efficiency.
Cooling only units are compliant to the ErP 2021 Regulation for process cooling application; for comfort cooling application they are compliant if provided with EC or ECH accessory (EC Inverter fans).
Heat pump models 726-P÷13010-P are compliant to the ErP Regulation; models
15010-P÷36012-P are compliant if provided with EC or ECH accessory (EC Inverter fans).

On request, units can be supplied with R452B or R454B refrigerant.

Versies

CHA/K - Cooling only
CHA/K/WP - Reversible Heat Pump
CHA/K/SSL - Super silenced cooling only
CHA/K/WP/SSL - Super silenced reversible Heat Pump

Vermogen

  • 228-1211 kW Verwarmingscapaciteit
  • 199-1051 kW Koelcapaciteit

Kenmerken

Structure with supporting frame, made of galvanised sheet metal with additional protection provided by polyester powder coating.
Scroll compressors with oil sight glass, internal overheat protection and crankcase heater.
Axial fans directly coupled to an electric motor with external rotor.
Condenser made of copper tubes and aluminium finned coils.
Evaporator AISI 316 stainless steel braze welded plates type with two independent circuits on the refrigerant side and one on the water side, complete with water differential pressure switch. On the Heat Pump units it is always installed an antifreeze heater.
Cooling circuit shut-off valve on liquid line in 1048-P÷36012-P models.
Electronic expansion valve.
Electronic high and low pressure gauges.
R410A refrigerant. On request R452B or R454B refrigerant.
Electrical board includes: main switch with door safety interlock, fuses or magnetothermic switches, thermal protection relays for compressors and thermocontacts for fans.
Microprocessor control and regulation system.
