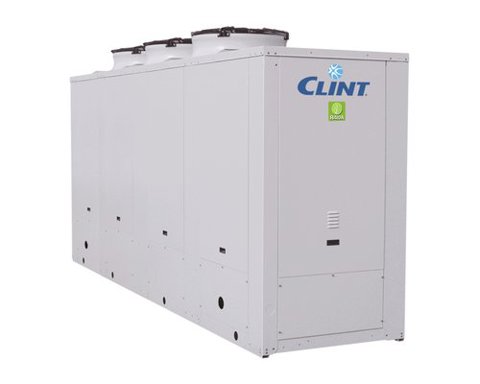

MHA/K 182÷604
AIRCOOLED CONDENSING UNITS AND REVERSIBLE CONDENSING UNITS WITH AXIAL FANS AND SCROLL COMPRESSORS
The condensing units and reversible condensing units of the MHA/K 182÷604 series, with R410A refrigerant, are designed to satisfy the needs of medium and large-sized domestic or industrial systems.
These outdoor units are combined with evaporators in split system air conditioning installations, allowing the rooms to be cooled and dehumidified or to be heated. They can also be used in combination with hydronic evaporating units in both air conditioning and industrial process cooling applications
They are equipped with Scroll compressors and axial fans, and they enable immediate and efficient use thanks to particular technical and design adjustments.
A wide range of accessories, factory fitted or supplied separately, complete the outstanding versatility and functionality of the series.
Versies
- MHA/K - Cooling only
- MHA/K/WP - Reversible Heat Pump
- MHA/K/SSL - Super silenced cooling only
- MHA/K/WP/SSL - Super silenced reversible Heat Pump
Vermogen
- 51.0-188 kW
- 14.0-54.0 Ton
Kenmerken
- Structure with supporting frame, made of galvanised sheet metal with additional protection provided by polyester powder coating.
- Scroll compressors with oil sight glass, internal overheat protection and crankcase heater.
- Axial fans directly coupled to an electric motor with external rotor.
- Condenser made of copper tubes and aluminium finned coil.
- R410A refrigerant.
- Electrical board includes: main switch with door safety interlock, fuses, thermal protection relays for compressors and thermocontacts for fans.
- Microprocessor control and regulation system.
