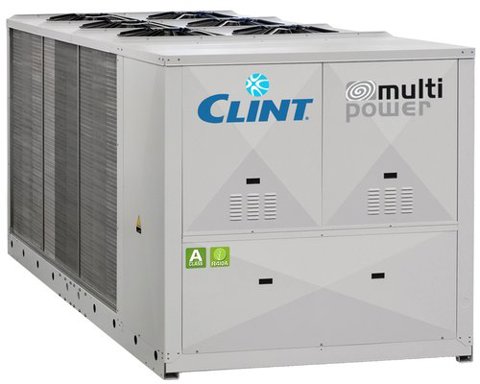

CHA/K/AF/WP 726-P÷24012-P
A CLASS ENERGY EFFICIENCY AIRCOOLED REVERSIBLE HEAT PUMPS WITH AXIAL FANS, SCROLL COMPRESSORS AND PLATE EXCHANGER
The CHA/K/A/WP 726-P÷24012-P reversible Heat Pumps are characterized by A CLASS energy efficiency. The units are characterized by multi-compressor design on double cooling circuit, to reach high energy performances, reduction of current at start-up, elimination of inertial tanks and excellent silent functioning. The use of components built in large series makes them highly reliable and the management of a high number of compressors allows increased life span with reduction of machine stopping risks and easier maintenance operations. A wide range of accessories, factory fitted or supplied separately, complete the outstanding versatility and functionality of the series. Are available as option the new EC Inverter fans with high available static pressure and efficiency.
The units are designed for hot water production up to 55°C. The units are compliant to the ErP Regulation. On request, units can be supplied with R452B or R454B refrigerant.
Versies
- CHA/K/A/WP - Reversible Heat Pump
- CHA/K/A/WP/SSL - Super silenced reversible Heat Pump
Vermogen
- 227-762 kW Verwarmingscapaciteit
- 194-671 kW Koelcapaciteit
Kenmerken
- Structure with supporting frame, made of galvanised sheet metal with additional protection provided by polyester powder coating.
- Scroll compressors with oil sight glass, internal overheat protection and crankcase heater.
- Axial fans directly coupled to an electric motor with external rotor.
- Condenser made of copper tubes and aluminium finned coils.
- Evaporator AISI 316 stainless steel braze welded plates type with two independent circuits on the refrigerant side and one on the water side, complete with water differential pressure switch. On the units it is always installed an antifreeze heater.
- Cooling circuit shut-off valve on liquid line in 1048-P÷24012-P models.
- Electronic expansion valve.
- Electronic high and low pressure gauges.
- R410A refrigerant. On request R452B or R454B refrigerant.
- Electrical board includes: main switch with door safety interlock, fuses or magnetothermic switches, thermal protection relays for compressors and thermocontacts for fans.
- Functioning in heating mode with outside air temperature down to -15 °C.
- Microprocessor control and regulation system.
